ASPUR aerotain3
Containment deduster ASPUR aerotain3

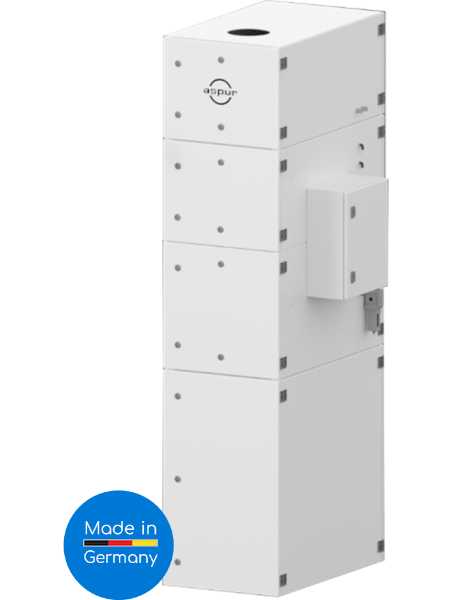

ASPUR aerotain3 containment dedusters safely extract dust, fumes, chips, fibres and gases* from processing machines and collect them in a container with dust bag, endless bag system or containment transfer system. The very sturdy housing is made of 3mm steel or stainless steel sheet and can be supplied in almost any RAL color. Standard is powder coating RAL 9016 matt.
*) only with acrivated carbon filter
The patent-pending system is equipped with horizontal main and HEPA filter systems, which can be changed without contamination and without tools. The particles of the collected process medium can be removed with low dust as well as dust-free. Due to these equipment features, this system can achieve OEB classes 1-6.
Large access doors installed on both sides, which extend over the entire height and width of the modules, allow the user quick and service-friendly access to all components.
Drive
The drive is provided by EC high-performance blowers, centrifugal fans or side channel blowers of the latest generation. All variants can be used in multi-shift operation. The required air volume flow can be adjusted manually or optionally automatically by the integrated frequency converter (FU).
Controller
A Rittal control cabinet with Siemens LOGO® modules and display as well as integrated frequency converter from Siemens (or identical) allows manual or automatic adjustment to the desired performance parameters of the device. This reduces unnecessary wear and tear. The integrated differential pressure sensor enables constant monitoring of the filter conditions. Via the Modbus equipment, all functions of the deduster can also be transferred to a customer's control system and operated from there.
Filter cartridges
The main filter cartridges are cleaned horizontally using the jet filter principle. The aluminum compressed air tank is automatically regulated by the control system according to time and/or differential pressure. All filters are easy to service and can be replaced without tools.
Dust collector

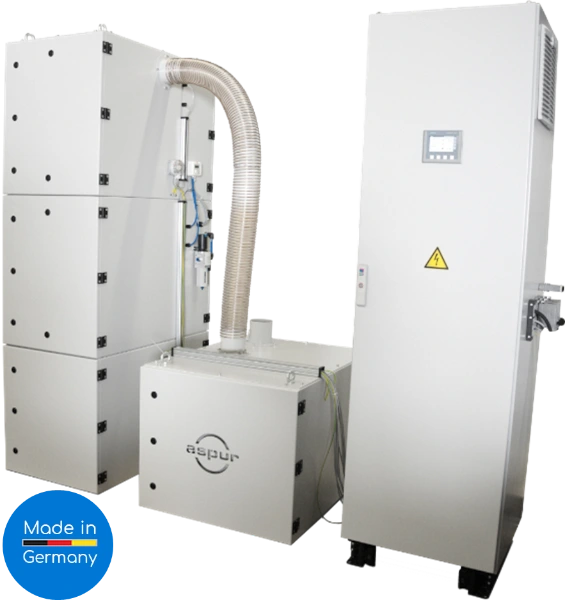

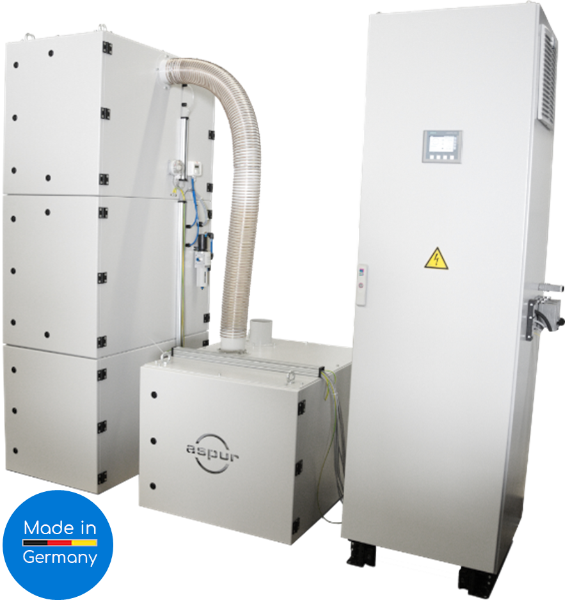

The standard unit includes a round, lowerable and extendable collection container made of stainless steel with push handle and conductive, steerable industrial rollers and inserted PE inliner. Alternatively, the unit is available with a tightly closing flap and endless bag or a containment transfer system for dust-free process dust disposal.
Standard equipment
Optional equipment
Product data
Product features |
|---|
| OEB 1-6 versions possible |
| Patent pending containment filter system |
| Mainfilter with JetPulse cleaning / Bag in Bag out |
| Integrated H14 filter / Bag in Bag out |
| Contamination-free, tool-free filter change |
| Large access doors (service-friendly) |
| Drives: IE3 centrifugal fans, EC motors, side channel blowers |
| Control cabinet with frequency converter and display (user-friendly) |
| Incl. Modbus TCP control and 24V potential-free contact |
Order now our containment deduster aerotain3 for your workplace!
Optional device features |
|---|
| Gas-Ex Z2 und Z1 |
| Dust-Ex Z22 und Z21 |
| Fire protection environment |
| Explosion protection environment |
| Completely available in stainless steel design |
| All RAL colors in powder coating |
| Activated carbon filtersystem |
| Precoating system for sticky process dust |
Order now our containment deduster aerotain3 for your workplace!
Areas of application |
|---|
| Processes |
| Lasering, welding, cutting |
| Filling, mixing |
| Packaging |
| Materials |
| Fume, smoke |
| Dust, fine particles |
Order now our containment deduster aerotain2 for your workplace!
Technical data
| aerotain3 EC 2.8 | aerotain3 EC 4.0 | aerotain3 D0.55R | aerotain3 D5.5 | aerotain3 D7.5 | aerotain3 D12.5 | |
|---|---|---|---|---|---|---|
| Item no. | 9110019 | 9110020 | 9110021 | 9110022 | 9110023 | 9110010 |
| Fan typ | EC high-pressure blower | EC high-pressure blower | Centrifugal fan | Side channel blower | Side channel blower | Side channel blower |
| Air volume flow | max. 1880 m³/h | max. 2000 m³/h | max. 720 m³/h | max. 520 m³/h | max. 900 m³/h | max. 1370 m³/h |
| Negative pressure (PA) | max. 5000 (50 mbar) | max. 5000 (50 mbar) | max. 1600 (16 mbar) | max. 27500 (275 mbar) | max. 20500 (205 mbar) | max. 20500 (205 mbar) |
| Drive power | 2x 1.4 kW | 4.1 kW | 0.55 kW | 5.5 kW | 7.5 kW | 12.5 kW |
| Voltage | 230 V | 400 V | 400 V | 400 V | 400 V | 400 V |
| Sound emission | 65 dB(A) | 65 dB(A) | 67 dB(A) | 65 dB(A) | 65 dB(A) | 65 dB(A) |
| Weigth | 500 kg | 510 kg | 530 kg | 540 kg | 550 kg | 560 kg |

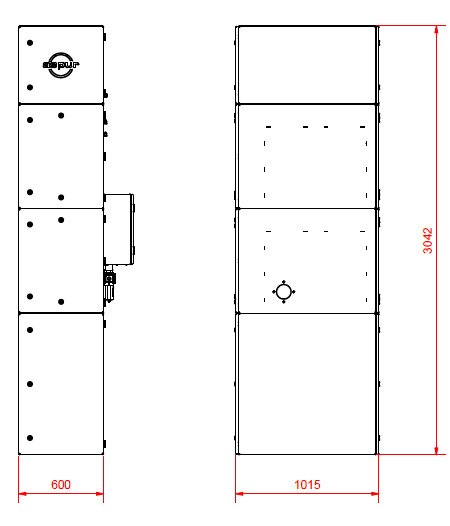

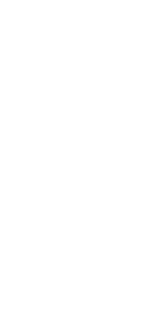

| Dimensions (l,w,h) | 600x1000x3000 mm | 600x1000x3000 mm | 600x1000x3000 mm | 600x1000x3000 mm | 600x1000x3000 mm | 600x1000x3000 mm |

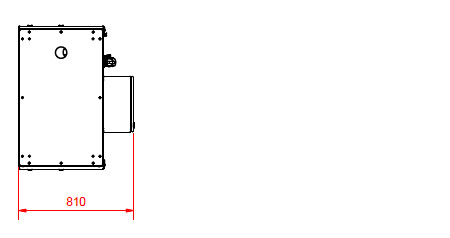

| Dimensions¹ (l,w,h) | 800x1000x3000 mm | 800x1000x3000 mm | 800x1000x3000 mm | 800x1000x3000 mm | 800x1000x3000 mm | 800x1000x3000 mm |
| Intake port² (d) | 150 mm | 150 mm | 100 mm | 100 mm | 50 mm | 70 mm |
| Dust coll. container³ | 50 L | 50 L | 50 L | 50 L | 50 L | 50 L |
| Powder coating | RAL9016 mat | RAL9016 mat | RAL9016 mat | RAL9016 mat | RAL9016 mat | RAL9016 mat |
| Main filter typ M | 4x Patronenfilter | 4x Patronenfilter | 4x Patronenfilter | 4x Patronenfilter | 4x Patronenfilter | 4x Patronenfilter |
| Filter surface | 9.6 m² | 9.6 m² | 9.6 m² | 9.6 m² | 9.6 m² | 9.6 m² |
| Filter surface load | ||||||
| Controller | Siemens Logo® | Siemens Logo® | Siemens Logo® | Siemens Logo® | Siemens Logo® | Siemens Logo® |
Data are subject of technical changes.
Right trimmed columns can be scrolled (wiped) to the left!
Optional features
| aerotain3 EC 2.8 | aerotain3 EC 4.0 | aerotain3 D0.55R | aerotain3 D5.5 | aerotain3 D7.5 | aerotain3 D12.5 | |
|---|---|---|---|---|---|---|
| HEPA filter class H14 | yes | yes | yes | yes | yes | yes |
| Dust Ex-Zone 22 | yes | yes | yes | yes | yes | yes |
| Dust Ex-Zone 21 | no | no | yes | yes | yes | yes |
| Gas Ex-Zone 2 | no | no | yes | yes | yes | yes |
| Gas Ex-Zone 1 | no | no | yes | yes | yes | yes |
| Explosion prevention* | yes | yes | yes | yes | yes | yes |
| Fire prevention* | yes | yes | yes | yes | yes | yes |
| Activated carbon filter | yes | yes | yes | yes | yes | yes |
| Stainless steel version | yes | yes | yes | yes | yes | yes |
Right trimmed columns can be scrolled (wiped) to the left!
Special features
- ASPUR-NOISE-ELIMINATOR - With reduced noise level due to motor sound insulation
- ASPUR-SAFETY-FILTERCHANGE - Contamination-free filter change jet mainfilter „M“
- ASPUR-SAFETY-FILTERCHANGE - Contamination-free filter change HEPA filter „H“
- ASPUR Expansions-Extraction-System - Baffle plate, deflection and abrupt expansion of the intake process air, reduces the filter load and enables coarse particle separation
- Various low-dust and dust-free discharge systems available
