ASPUR aero5eco

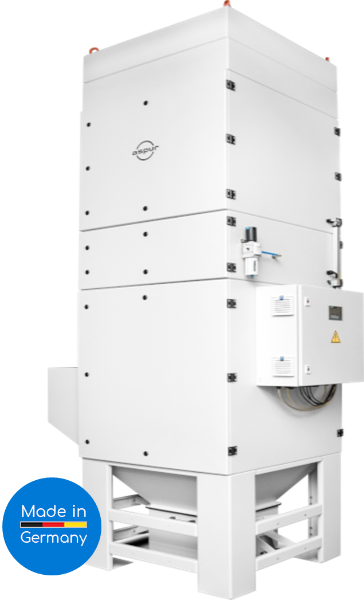

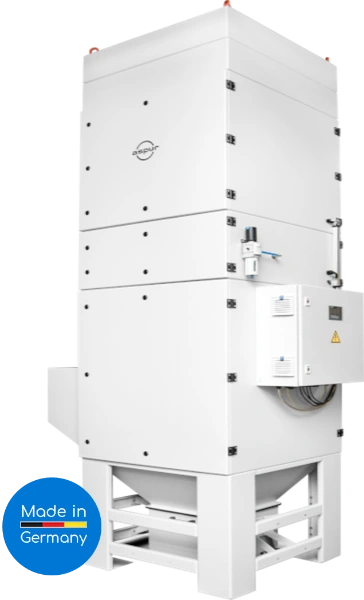

Deduster ASPUR aero5eco
The aero5eco dust extractor is the most powerful model in the aero series and is used in the manufacturing industry to extract and safely separate dust, chips, smoke, fibers and gases*.
* only with activated carbon filter
In terms of filtering and safety, the systems are designed in such a way that they can be used indoors and in areas where there is a risk of explosion.
Industrial centrifugal fans with backward curved impellers and Siemens IE3 motors of the latest generation provide both a low-noise and reliable drive. Together with the installed frequency converter, the motors can be variably adjusted to the desired outputs, either manually or automatically. These features ensure that only the power actually required is called up, thus reducing power consumption and loss of materials.
Large access doors installed on both sides, which extend over the entire height and width of the modules, allow the user quick and service-friendly access to all components.
In addition, all filter systems are designed to be changed without tools.
The intake system with baffle plate, deflection and expansion area reduces the filter load and protects it from incoming particles.
Thanks to the modular design, HEPA filters, activated carbon filters and other filter systems can be changed or added according to the customer's individual wishes and, under certain circumstances, upgraded at a later date.
Standard equipment
Optional equipment
Product data
Product features |
|---|
| High quality filtersystem |
| Integrated H14 filter (optional) |
| Simple, fast, tool-free filter change (replacable pre-filter) |
| Large access doors on both sides (service-friendly) |
| IE3 centrifugal fans |
| Control cabinet with frequency converter, Modbus and display (user-friendly) |
Order now our dust extractor aero4eco for your workplace!
Optional device features |
|---|
| Gas-Ex Z2 and Z1 |
| Dust-Ex Z22 and Z21 |
| UL, CCC, GMP-compliant design |
| Stainless steel version |
| All RAL colors in powder coating |
| Activated carbon filter system |
| Fire protection equipment |
| Explosion protection equipment |
| HEPA H14 filter |
| Misc. discharge systems (rotary valve, big bag, double slider) |
Order now our dust extractor aero4eco for your workplace!
Areas of application |
|---|
| Processes |
| Lasering, welding, cutting |
| Drilling, lathing, milling |
| Filling, mixing |
| Packaging |
| Materials |
| Fume, smoke |
| Dust, fine particles |
| Chips |
Order now our dust extractor aero4eco for your workplace!
Technical data
| aero5eco D11 M Medium pressure |
aero5eco D15 M Medium pressure |
aero5eco D30 M Medium pressure |
aero5eco D11 Low pressure |
aero5eco D15 Low pressure |
aero5eco D18.5 Low pressure |
|
|---|---|---|---|---|---|---|
| Itel no. | 9020149 | 9020155 | 9020159 | 9020157 | 9020156 | 9020151 |
| Air volume flow | max. 9000 m³/h | max. 13000 m³/h | max. 18000 m³/h | max. 17000 m³/h | max. 19000 m³/h | max. 24000 m³/h |
| Negative pressure | max. 6000 PA | max. 7500 PA | max. 9500 PA | max. 2900 PA | max. 3300 PA | max. 3700 PA |
| Drive power | 11 kW | 15 kW | 30 kW | 11 kW | 15 kW | 18.5 kW |
| Voltage | 400 V | 400 V | 400 V | 400 V | 400 V | 400 V |
| Sound emission | 66 dB(A) | 69 db(A) | 72 dB(A) | 69 dB(A) | 71 db(A) | 74 dB(A) |
| Weigth | 1150 kg | 1180 kg | 1220 kg | 920 kg | 950 kg | 970 kg |

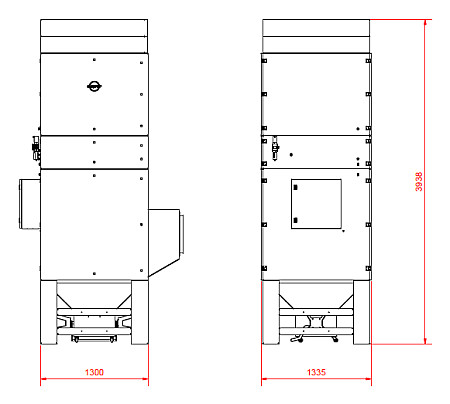

| Dimensions (l,w,h) | 1300x1300x3900 mm | 1300x1300x3900 mm | 1300x1300x3900 mm | 1300x1300x3900 mm | 1300x1300x3900 mm | 1300x1300x3900 mm |

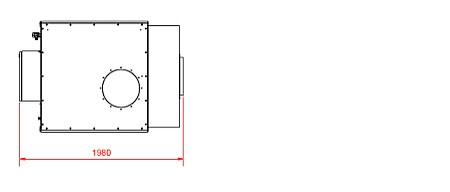

| Dimensions¹ (l,w,h) | 1300x1900x3900 mm | 1300x1900x3900 mm | 1300x1900x3900 mm | 1300x1900x3900 mm | 1300x1900x3900 mm | 1300x1900x3900 mm |
| Intake port (d) | 500 mm | 300 mm | 300 mm | 500 mm | 500 mm | 500 mm |
| Dust coll. container² | 50 L | 50 L | 50 L | 50 L | 50 L | 50 L |
| Powder coating | RAL9016 mat | RAL9016 mat | RAL9016 mat | RAL9016 mat | RAL9016 mat | RAL9016 mat |
| Filter class | M | M | M | M | M | M |
| Filter surface | 180 m² | 225 m² | 225 m² | 225 m² | 225 m² | 225 m² |
| Filter surface load | 40 m³/m²/h | 58 m³/m²/h | 80 m³/m²/h | 75 m³/m²/h | 85 m³/m²/h | 107 m³/m²/h |
| Filter cleaning³ | JetPulse | JetPulse | JetPulse | JetPulse | JetPulse | JetPulse |
| Controller | Siemens Logo® | Siemens Logo® | Siemens Logo® | Siemens Logo® | Siemens Logo® | Siemens Logo® |
Right trimmed columns can be scrolled (wiped) to the left!
Optional features
| aero5eco D11 M Medium pressure |
aero5eco D15 M Medium pressure |
aero5eco D30 M Medium pressure |
aero5eco D11 Low pressure |
aero5eco D15 Low pressure |
aero5eco D18.5 Low pressure |
|
|---|---|---|---|---|---|---|
| Endless bag system | yes | yes | yes | yes | yes | yes |
| Hobbock container | yes | yes | yes | yes | yes | yes |
| PE-Bag | yes | yes | yes | yes | yes | yes |
| Rotary valve | yes | yes | yes | yes | yes | yes |
| Double slider | yes | yes | yes | yes | yes | yes |
| ePTFE membr. filter | yes | yes | yes | yes | yes | yes |
| HEPA filter class H14 | yes | yes | yes | yes | yes | yes |
| Dust Ex-Zone 22/21 | yes | yes | yes | yes | yes | yes |
| Gas Ex-Zone 2/1 | yes | yes | yes | yes | yes | yes |
| Explosion prevention* | yes | yes | yes | yes | yes | yes |
| Fire prevention* | yes | yes | yes | yes | yes | yes |
| Activated carbon filter | yes | yes | yes | yes | yes | yes |
| Stainless steel version | yes | yes | yes | yes | yes | yes |
Right trimmed columns can be scrolled (wiped) to the left!
Special features
- ASPUR-MODULAR-DESIGN - Structure in modular assemblies, enables extensive variety
- ASPUR-DUAL-DOOR-System - Accessible from two sides via large doors
- ASPUR-NOISE-ELIMINATOR - With reduced noise level due to highly efficient sound insulation
- ASPUR-EASY-FILTERCHANGE - Simple, tool-free filter change
- ASPUR-Expansion-Extraction-System - Baffle plate, deflection and abrupt expansion of the intake process air, reduces the filter load and enables coarse particle separation
