ASPUR airsorb4, airsorb4fd

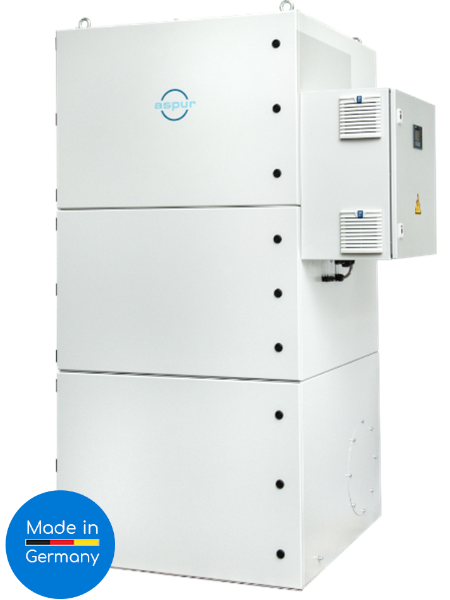

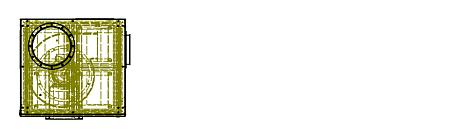

Storage filter ASPUR airsorb4
Storage filters of the airsorb4 assembly are used in manufacturing plants to extract and safely separate gases*, fumes, odors*, proportional dusts (airsorb4 model) at processing machines. In addition, these units can also be used to extract aerosols and oil mists (airsorb4fd model). Due to the large dimensioned filter systems, long filter service lives result.
*) only with activated carbon filter

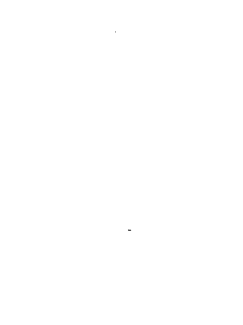

The puristic and modern design of the ASPUR devices is also reflected in this device group. During development, care has been taken to ensure that access to all areas is as extensive as possible. All filters can therefore be replaced within a very short time. G4 coarse filters in a plastic frame and retaining plate and aluminum mesh filters are coarse pre-separators and spark arrestors, respectively. Both filters can be easily removed and reinserted.
The main filter system consists of an F9 filter (airsorb4 model) or fogdrain filter (airsorb4fd model) and H14 filter or H14 filter with integrated coalescence filter and can be pulled out very easily from its final position. The drawer system developed for this purpose is protected as a utility model. The filters can be completely extended and removed or replaced from the holder. After insertion of the filter pack, they are automatically brought into the end position and sealed.
Thanks to the modular design, a wide variety of prefilters and main filters such as HEPA filters, activated carbon filters, demister filters, G4 filters, F9 filters, and Fogdrain filters can be used or combined. Below the pre-filters, the intake space is dimensioned in such a way that a filter bag or a pre-filter box can be inserted as required.
Standard equipment
Optional equipment
Product data
Product features |
|---|
| High-quality filter system with pull-out for filter change without tools |
| Integrated H14 filter |
| Integrated multi-stage filter system G4, aluminum knitted filter, ISO 85 ePM1, filter bag (polyester fleece), HEPA H14 filter |
| Alternative coalescence filter |
| Large access doors (service friendly) |
| EC extraction blowers and fans |
| Integrated Siemens LOGO control with display and Modbus TCP connection |
| Powder coating RAL9016 white |
| Industrial swivel castors with stopper, conductive |
Order now our storage filter airsorb2 for your workplace!
Optional device features |
|---|
| Gas-Ex Z2 and Z1 |
| Dust-Ex Z22 and Z21 |
| Completely available in stainless steel design |
| All RAL colors in powder coating |
| Activated carbon filersystem |
| Filter bag, filter box |
Order now our storage filter airsorb2 for your workplaces!
Areas of application | |
|---|---|
| Processes | |
| Lasering, welding, cutting | |
| Filling, mixing | |
| Vaporizing | |
| Packaging | |
| Bonding, coating | |
| Materials |
| Fume, smoke |
| Gases, odors |
| Dust, fine particles |
| Fibers, fabrics |
Order now our storage filter airsorb2 for your workplaces!
Technical data
airsorb2 (smoke, dusts) and airsorb2fd (aerosols, oil mist)
| airsorb4 D3 for smoke, dusts |
airsorb4 D5.5 for smoke, dusts |
airsorb4fd D3 for aerosols, oil mist |
airsorb4fd D5.5 for aerosols, oil mist |
|
|---|---|---|---|---|
| Item no. | 9010136 | 9010135 | 9010149 | 9010150 |
| Air volume flow | max. 4300 m³/h | max. 6000 m³/h | max. 4300 m³/h | max. 6000 m³/h |
| Negative pressure | max. 3500 PA | max. 4500 PA | max. 3500 PA | max. 4500 PA |
| Drive power | 3.0 kW | 5.5 kW | 3.0 kW | 5.5 kW |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Voltage | 400 V | 400 V | 400 V | 400 V |
| Sound emission | 62 dB(A) | 64 db(A) | 62 dB(A) | 64 db(A) |
| Weight | 620 kg | 690 kg | 620 kg | 690 kg |

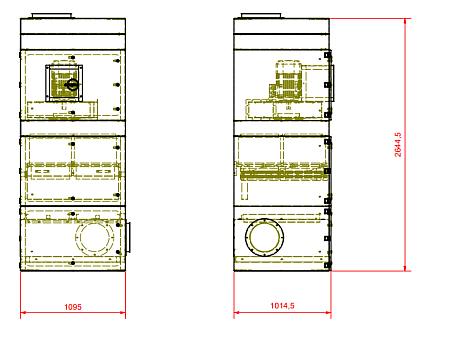

| Dimensions (l,w,h) | 1095x1015x2645 mm | 1095x1015x2645 mm | 1095x1015x2645 mm | 1095x1015x2645 mm |
| Intake port (d) | 300 mm | 300 mm | 300 mm | 300 mm | Powder coating | RAL9016 mat | RAL9016 mat | RAL9016 mat | RAL9016 mat | HEPA H14 filter | yes | yes | yes | yes |
| Fogdrain filter¹ | no | no | yes | yes |
| Prefilter F9² | yes | yes | no | no |
| G4 filter | yes | yes | yes | yes |
| Metal mesh alu-filter | yes | yes | yes | yes |
| Controller³ | Siemens Logo® | Siemens Logo® | Siemens Logo® | Siemens Logo® |
Right trimmed columns can be scrolled (wiped) to the left!
Optional features
| airsorb4 D3 for smoke, dusts |
airsorb4 D5.5 for smoke, dusts |
airsorb4fd D3 for aerosols, oil mist |
airsorb4fd D5.5 for aerosols, oil mist |
|
|---|---|---|---|---|
| Dust Ex-Zone 22 | yes | yes | yes | yes |
| Dust Ex-Zone 21 | yes | yes | yes | yes |
| Gas Ex-Zone 2 | yes | yes | yes | yes |
| Gas Ex-Zone 1 | yes | yes | yes | yes |
| Activated carbon filter | yes | yes | yes | yes |
| Demister filter | yes | yes | yes | yes |
| Stainless steel version | yes | yes | yes | yes |
Right trimmed columns can be scrolled (wiped) to the left!
Special features
- ASPUR-MODULAR-DESIGN - Structure in modular assemblies, enables extensive variety of variants
- ASPUR-DOOR-SYSTEM - Large doors for barrier-free access
- ASPUR-NOISE-ELIMINATOR - With reduced noise level due to highly efficient sound insulation
- ASPUR-EASY-FILTERCHANGE - Simple, tool-free filter change
Device functions
